Adaptor Stainless Steel (SS316L) (Metric to Metric)

Category : Adaptor

Specifications
IP Rating IP68
Certificates IECEx PRE 20.0123X
ATEX Presafe 20 ATEX 24571X
EAC RU C-IN.AA71.B.00212/20
Thread Type Metric to Metric
Protection Type Ex d, Ex e, Ex t
Material Stainless Steel (SS316L)
Ambient Temperature IECEx/ATEX : -55° C < Ta < +160° C EAC: -60° C < Ta < +130° C

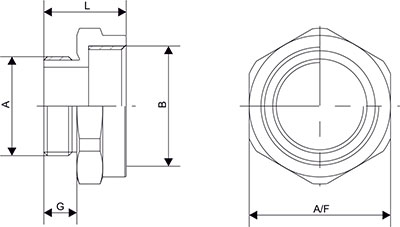

Size Chart

Order Code A B L G A/F Data Sheet (PDF)
CEMM-EX-AD0M1M X6 (M16 to M20) M16X1.5 M20X1.5 34 16 25 View
CEMM-EX-AD0M2M X6 (M16 to M25) M16X1.5 M25X1.5 34 16 30 View
CEMM-EX-AD1M1M X6 (M20 to M20) M20X1.5 M20X1.5 34 16 25 View
CEMM-EX-AD1M2M X6 (M20 to M25) M20X1.5 M25X1.5 34 16 30 View
CEMM-EX-AD1M3M X6 (M20 to M32) M20X1.5 M32X1.5 34 16 36 View
CEMM-EX-AD2M2M X6 (M25 to M25) M25X1.5 M25X1.5 34 16 30 View
CEMM-EX-AD2M3M X6 (M25 to M32) M25X1.5 M32X1.5 34 16 36 View
CEMM-EX-AD2M4M X6 (M25 to M40) M25X1.5 M40X1.5 34 16 45 View
CEMM-EX-AD2M5M X6 (M25 to M50) M25X1.5 M50X1.5 34 16 55 View
CEMM-EX-AD3M3M X6 (M32 to M32) M32X1.5 M32X1.5 34 16 36 View
CEMM-EX-AD3M4M X6 (M32 to M40) M32X1.5 M40X1.5 34 16 45 View
CEMM-EX-AD3M5M X6 (M32 to M50) M32X1.5 M50X1.5 34 16 55 View
CEMM-EX-AD4M4M X6 (M40 to M40) M40X1.5 M40X1.5 34 16 45 View
CEMM-EX-AD4M5M X6 (M40 to M50) M40X1.5 M50X1.5 34 16 55 View
CEMM-EX-AD4M6M X6 (M40 to M63) M40X1.5 M63X1.5 36 16 68 View
CEMM-EX-AD4M7M X6 (M40 to M75) M40X1.5 M75X1.5 39 16 80 View
CEMM-EX-AD5M5M X6 (M50 to M50) M50X1.5 M50X1.5 34 16 55 View
CEMM-EX-AD5M6M X6 (M50 to M63) M50X1.5 M63X1.5 36 16 68 View
CEMM-EX-AD5M7M X6 (M50 to M75) M50X1.5 M75X1.5 39 16 80 View
CEMM-EX-AD6M6M X6 (M63 to M63) M63X1.5 M63X1.5 34 16 68 View
CEMM-EX-AD6M7M X6 (M63 to M75) M63X1.5 M75X1.5 39 16 80 View
CEMM-EX-AD6M8M X6 (M63 to M90) M63X1.5 M90X1.5 39 16 95 View
CEMM-EX-AD7M7M X6 (M75 to M75) M75X1.5 M75X1.5 44 20 80 View
CEMM-EX-AD7M8M X6 (M75 to M90) M75X1.5 M90X1.5 44 20 95 View
CEMM-EX-AD7M9M X6 (M75 to M100) M75X1.5 M100X1.5 44 20 105 View
CEMM-EX-AD8M8M X6 (M90 to M90) M90X1.5 M90X1.5 44 20 95 View
