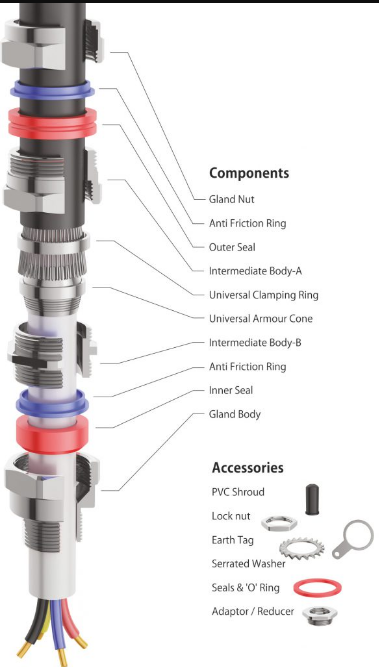

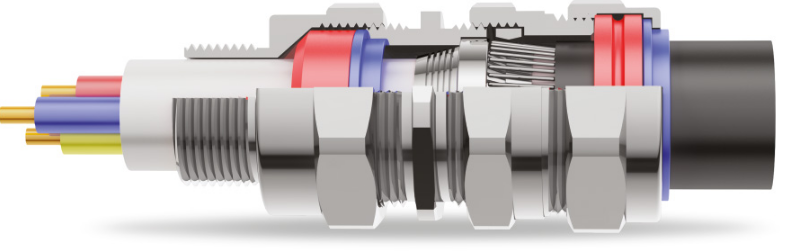

- E1FUNV Double Compression cable gland Stainless Steel (SS316L) (Metric Thread)
Category : Double Compression Cable Gland
| Type | E1FUNV Cable Gland |
| Cable Types | For all types of IEC armoured cables. |
| Application | Provides a flameproof (Type ”D”) seal on the cable inner bedding. Allows mechanical cable retention and earth continuity via the cable armor termination. Reversible armour cone and clamping ring arrangement facilitates remote make off and enables the cable to be disconnected from the equipment. Stepped cone is suitable for SWA cables. Grooved cone is suitable for all other approved armored cables. |
| Option Thread | Metric, NPT, BSP, BSPT |
| Gland Material | Stainless Steel (SS316L) |
| IP Rating | IP66 & IP67 |
| Sealing Ring | Double Compression Sealing (Sealing on both outer and inner sheath) |
| Operating Temperature | Standard Seals (Nitrile): -20°C To 80°C. on Request (Silicone) : – 60°C to +180°C |
| Finish | Natural Brass or Nickle Plated or Electroless Nickle Plated |
| Accessories | PVC S/ LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer. |
| IECEx Certificate No. | IECEx PRE 20.0124X |
| ATEX Certificate No. | Presafe 20 ATEX 48906X |
| EAC Certificate No. | RU C-IN.AA71.B.00212/20 |
| Protection Type | Ex d, Ex e, Ex t |

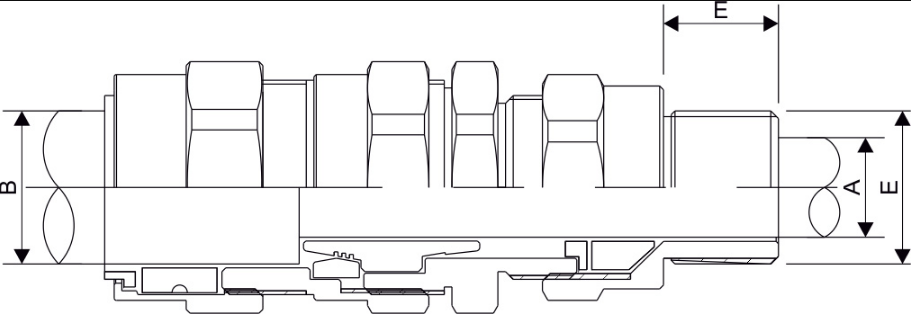

| Order Code | Cable Gland Size | Metric | Connection Thread Length | Cable Dia. (mm) | Across Flat | Across Corner | Data Sheet (PDF) |
|---|---|---|---|---|---|---|---|
| CEMM-EX-E1FUNV-20S16 1M X6 (M20) | 20S16 | M20 | 17 | 6.2 mm - 13.1 mm | 25 | 27.5 | View |
| CEMM-EX-E1FUNV-20S 1M X6 (M20) | 20S | M20 | 17 | 9.6 mm - 15.5 mm | 25 | 27.5 | View |
| CEMM-EX-E1FUNV-20S 1M X6 (M20) | 20S | M20 | 17 | 12.5 mm - 20.9 mm | 31 | 34 | View |
| CEMM-EX-E1FUNV-25S 2M X6 (M25) | 25S | M25 | 17 | 14 mm - 21.5 mm | 38 | 42 | View |
| CEMM-EX-E1FUNV-25 2M X6 (M25) | 25 | M25 | 17 | 18.3 mm - 25.6 mm | 38 | 42 | View |
| CEMM-EX-E1FUNV-32 3M X6 (M32) | 32 | M32 | 17 | 23.7 mm - 33.4 mm | 46 | 51 | View |
| CEMM-EX-E1FUNV-40 4M X6 (M40) | 40 | M40 | 17 | 28 mm - 39.5 mm | 55 | 60 | View |
| CEMM-EX-E1FUNV-50S 5M X6 (M50) | 50S | M50 | 17 | 35.2 mm - 46 mm | 61 | 66.5 | View |
| CEMM-EX-E1FUNV-50 5M X6 (M50) | 50 | M50 | 17 | 40.5 mm - 52.4 mm | 70 | 76 | View |
| CEMM-EX-E1FUNV-63S 6M X6 (M63) | 63S | M63 | 17 | 45.6 mm - 58.5 mm | 75 | 83 | View |
| CEMM-EX-E1FUNV-63 6M X6 (M63) | 63 | M63 | 17 | 54.6 mm - 64.5 mm | 80 | 89 | View |
| CEMM-EX-E1FUNV-75S 7M X6 (M75) | 75S | M75 | 17 | 59 mm - 70.4 mm | 91 | 98.5 | View |
| CEMM-EX-E1FUNV-75 7M X6 (M75) | 75 | M75 | 17 | 66.7 mm - 76.3 mm | 99.5 | 109 | View |
| CEMM-EX-E1FUNV-90 8M 6 (M90) | 90 | M90 | 24 | 76.2 mm - 87.2 mm | 114.5 | 124 | View |
