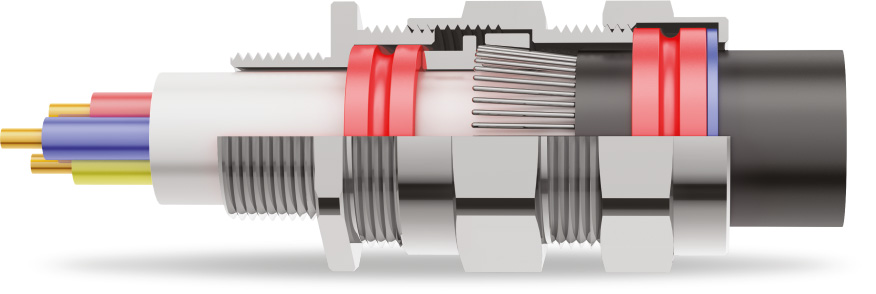

E1W Double Compression Cable Gland Stainless Steel (SS316L) (Metric Thread)

Category : E1W Cable Gland Double Compression Cable Gland

Specifications
Type E1W Double Compression Cable Gland
Cable Types Armoured (Steel wire armour (SWA) Aluminium wire armour (AWA)
Application For use with all types of SWA cable for Indoor and outdoor application. Used in applications where it is essential to provide an IP66 seal on the outer sheath. Armour lock with separate armour locking ring, ideal for checking electrical continuity
Standard BS6121: Part 1: 2005. EN50262
Option Thread Metric
Gland Material Stainless Steel (SS316L)
IP Rating IP 66
Sealing Method Double Compression Sealing (Sealing on both Outer and Inner Sheath)
Operating Temperature Standard Seals (Nitrile): -20°C TO 80°C. On Request (Silicone): -50°C To +160°C
Finish Natural Brass or Nickle Plated or Electroless Nickle Plated

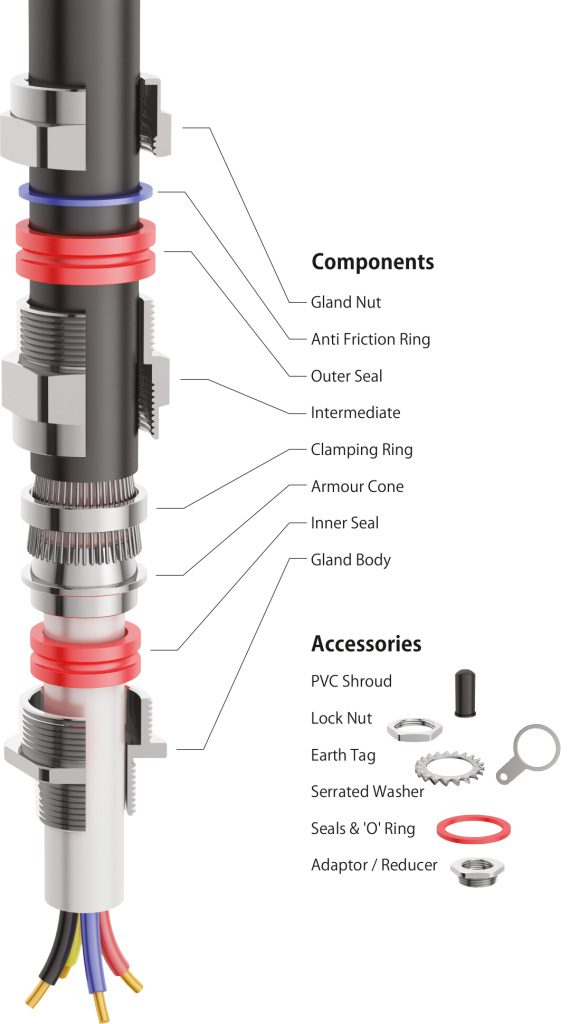

Accessories PVC Shroud, SLSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer.

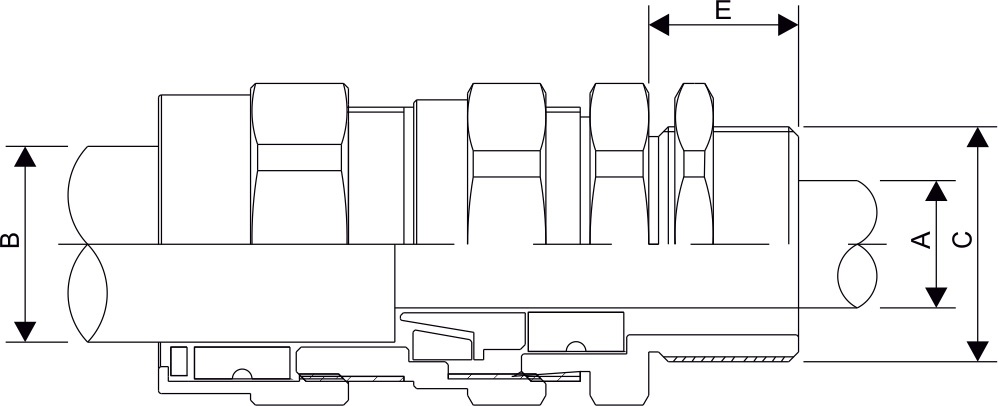

Size Chart

Order Code Cable Gland Size Metric Thread Size Thread Length Cable Dia. (mm) Across Flat Across Corner
CEMM-EX-E1W16 0M X6 (M16) 16 M16x1.5 M16 10 11.8 mm - 15.4 mm 24 26
CEMM-EX-E1W20S 1M X6 (M20) 20S M20X1.5 M20 10 11.8 mm - 15.4 mm 24 26
CEMM-EX-E1W20L 1M X6 (M20) 20L M20X1.5 M20 10 15 mm - 20.3 mm 27 30
CEMM-EX-E1W25S 2M X6 (M25) 25S M25X1.5 M25 10 18.2 mm - 23.5 mm 32 35.5
CEMM-EX-E1W25L 2M X6 (M25) 25L M25X1.5 M25 10 21.5 mm - 27 mm 36 39.5
CEMM-EX-E1W32S 3M X6 (M32) 32S M32X1.5 M32 10 26.3 mm - 31.8 mm 41 46
CEMM-EX-E1W32L 3M X6 (M32) 32L M32X1.5 M32 10 28.3 mm - 33.8 mm 45 51
CEMM-EX-E1W40S 4M X6 (M40) 40S M40X1.5 M40 10 32.7 mm - 39.4 mm 51 56
CEMM-EX-E1W40L 4M X6 (M40) 40L M40X1.5 M40 15 33.8 mm - 40.5 mm 52 57.5
CEMM-EX-E1W50S 5M X6 (M50) 50S M50X1.5 M50 15 40 mm - 46.7 mm 59 65
CEMM-EX-E1W50L 5M X6 (M50) 50L M50X1.5 M50 15 45.8 mm - 52.8 mm 65.5 73
CEMM-EX-E1W63S 6M X6 (M63) 63S M63X2.5 M63 15 52.3 mm - 60.5 mm 75 83
CEMM-EX-E1W63L 6M X6 (M63) 63L M63X1.5 M63 15 58.6 mm - 66.8 mm 80 89
CEMM-EX-E1W75S 7M X6 (M75) 75S M75X1.5 M75 15 63.5 mm - 72.5 mm 87 97
CEMM-EX-E1W75L 7M X6 (75) " 75L M75X1.5 M75 15 69 mm - 78.5 mm 97 108
CEMM-EX-E1W90L 8M X6 (M90) 90L M90X2 M90 20 78.5 mm - 91 mm 104 114.5
