- E1W Double Compression Cable Gland Stainless Steel (SS316L) (NPT Thread)
Category : E1W Cable Gland Double Compression Cable Gland
| Type | E1W Double Compression Cable Gland |
| Cable Types | Armoured (Steel wire armour (SWA) Aluminium wire armour (AWA) |
| Application | For use with all types of SWA cable for Indoor and outdoor application. Used in applications where it is essential to provide an IP66 seal on the outer sheath. Armour lock with separate armour locking ring, ideal for checking electrical continuity |
| Standard | BS6121: Part 1: 2005. EN50262 |
| Option Thread | NPT |
| Gland Material | Stainless Steel (SS316L) |
| IP Rating | IP66 |

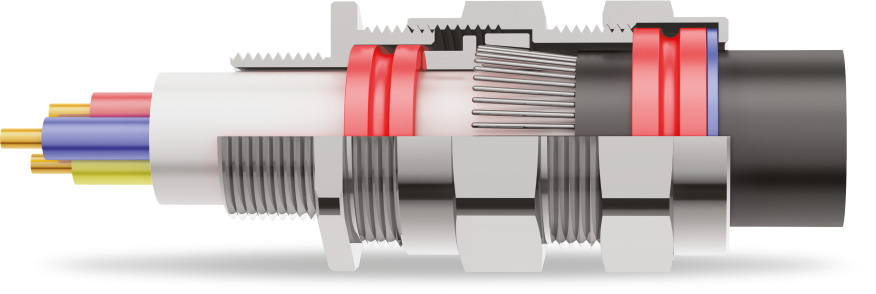

| Sealing Method | Double Compression Sealing (Sealing on both Outer and Inner Sheath) |
| Operating Temperature | Standard Seals (Nitrile): -20°C TO 80°C. On Request (Silicone): -50°C To +160°C |
| Finish | Natural Brass or Nickle Plated or Electroless Nickle Plated |

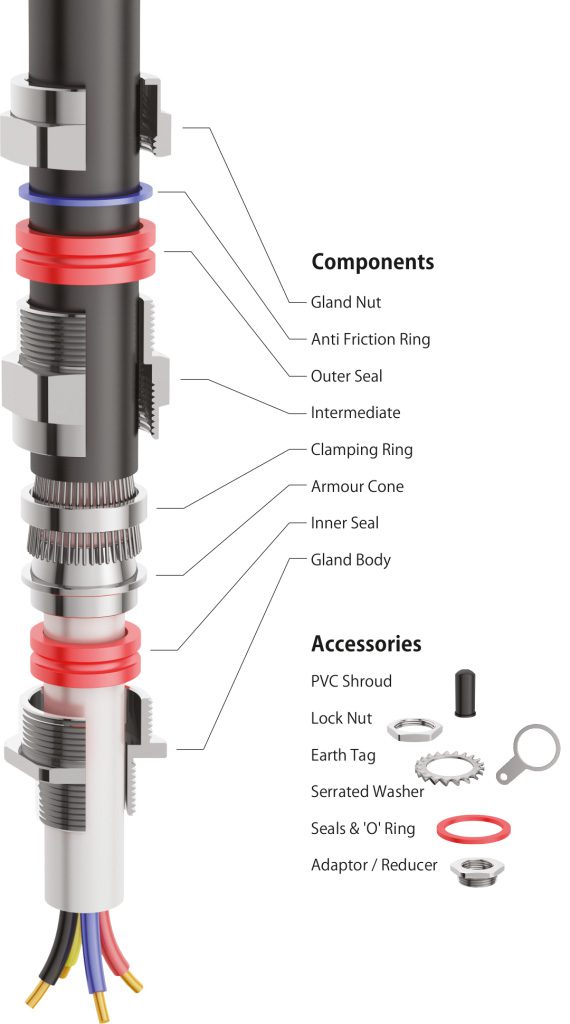

| Accessories | PVC Shroud, SLSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer. |

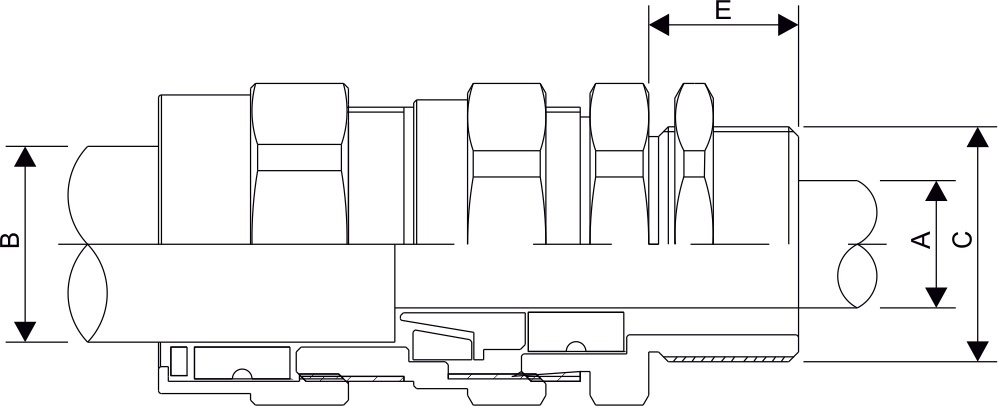

| Order Code | Cable Gland Size | Metric | Thread Size | Thread Length | Cable Dia. (mm) | Across Flat | Across Corner |
|---|---|---|---|---|---|---|---|
| CEMM-E1W16 1N X6 (3/8''NPT) | 16 | 3/8'' | 3/8'' | 10 | 11.8 mm - 15.4 mm | 24 | 26 |
| CEMM-E1W20S 1N X6 (1/2''NPT) | 20S | 1/2'' | 1/2'' | 10 | 11.8 mm - 15.4 mm | 24 | 26 |
| CEMM-E1W20L1N X6 (1/2''NPT) | 20L | 1/2'' | 1/2'' | 10 | 15 mm - 20.3 mm | 27 | 30 |
| CEMM-E1W25S 2N X6 (3/4''NPT) | 25S | 3/4'' | 3/4'' | 10 | 18.2 mm - 23.5 mm | 32 | 35.5 |
| CEMM-E1W25L 2N X6 (3/4''NPT) | 25L | 3/4'' | 3/4'' | 10 | 21.5 mm - 27 mm | 36 | 39.5 |
| CEMM-E1W32S 3N X6 (1''NPT) | 32S | 1'' | 1'' | 10 | 26.3 mm - 31.8 mm | 41 | 46 |
| CEMM-E1W32L 3N X6 (1''NPT) | 32L | 1'' | 1'' | 10 | 28.3 mm - 33.8 mm | 45 | 51 |
| CEMM-E1W40S 4N X6 (1 1/4''NPT) | 40S | 1.1/4'' | 1.1/4'' | 10 | 32.7 mm - 39.4 mm | 51 | 56 |
| CEMM-E1W40L 4N X6 (1 1/4''NPT) | 40L | 1.1/4'' | 1.1/4'' | 15 | 33.8 mm - 40.5 mm | 52 | 57.5 |
| CEMM-E1W50S 5N X6 (1 1/2''NPT) | 50S | 1.1/2'' | 1.1/2'' | 15 | 40 mm - 46.7 mm | 59 | 65 |
| CEMM-E1W50L 5N X6 (1 1/2''NPT) | 50L | 1.1/2'' | 1.1/2'' | 15 | 45.8 mm - 52.8 mm | 65.5 | 73 |
| CEMM-E1W63S 6N X6 (2''NPT) | 63S | 2'' | 2'' | 15 | 52.3 mm - 60.5 mm | 75 | 83 |
| CEMM-E1W63L 6N X6 (2''NPT) | 63L | 2'' | 2'' | 15 | 58.6 mm - 66.8 mm | 80 | 89 |
| CEMM-E1W75S 7N X6 (2 1/2''NPT) | 75S | 2.1/2'' | 2.1/2'' | 15 | 63.5 mm - 72.5 mm | 87 | 97 |
| CEMM-E1W75L 7N X6 (2 1/2''NPT) | 75L | 2.1/2'' | 2.1/2'' | 15 | 69 mm - 78.5 mm | 97 | 108 |
| CEMM-E1W90L 8N X6 (3''NPT) | 90L | 3'' | 3'' | 20 | 78.5 mm - 91 mm | 104 | 114.5 |
