- E1WB Barrier Cable Gland Stainless Steel (SS316L) Metric Thread
Category : E1WB Barrier Cable Gland
| Type | MM-Ex-E1WB Barrier Cable Gland |
| Cable Types | Suitable for Wire Braid Armour, STA, ASA, SWA, AWA, PWA, SWB armoured cables |
| Application | Gb (Zone 1 & 2), Gc (Zone 2) – Gas; Db (Zone 21 & 22), Dc (Zone 22) – Dust |
| Protection Type | Ex d, Ex e, Ex t |
| Gas Group / Dust Group | IIC and IIIC |
| EPL (Equipment Protection Level) | Gb (Zone 1 & 2), Gc (Zone 2); Db (Zone 21 & 22), Dc (Zone 22) |
| Thread Options | Metric |
| Material | SS304, SS316L |
| IP Rating | IP66, IP68 (5 m, 10 hrs) |
| Service Temperature | -40°C to +85°C |
| IECEx Certificate | IECEx SGS 26.0002X |
| ATEX Certificate | SGS26ATEX0010X |

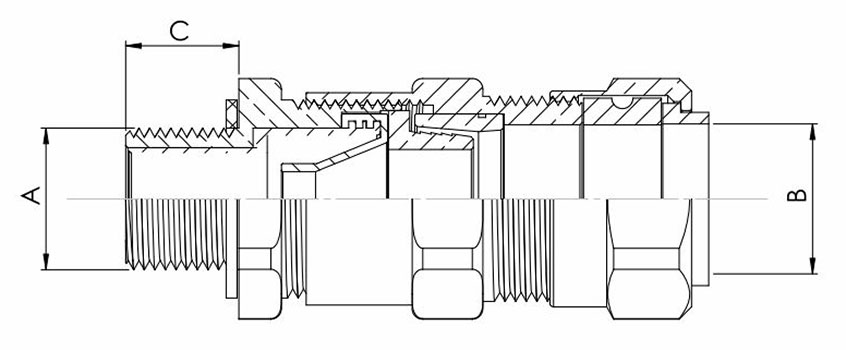

| Code | Size | Standard Metric Thread | Optional Metric Thread | Thread Length C | Outer Sheath Min | Outer Sheath Max | Inner Sheath Max Dia | Over Core Max Dia | Max No. of Cores | Armour Min | Armour Max | Orientation-1 Min | Orientation-1 Max | Across Flat | Across Corners | Data Sheet (PDF) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CEMM-EX-E1WB-16 0M X6 (M16) | 16 | M16×1.5 | M20×1.5 | 16 | 9 | 12 | 6.2 | 13.1 | 12 | 0.3 | 1 | 0.8 | 1.25 | 25 | 27.5 | View |
| CEMM-EX-E1WB-20S 1M X6 (M20) | 20S | M20×1.5 | M25×1.5 | 16 | 10 | 12 | 9.6 | 15.5 | 12 | 0.3 | 1 | 0.8 | 1.25 | 25 | 27.5 | View |
| CEMM-EX-E1WB-20 1M X6 (M20) | 20 | M20×1.5 | M25×1.5 | 16 | 12 | 15 | 12.5 | 20.9 | 15 | 0.4 | 1 | 0.8 | 1.25 | 31 | 34 | View |
| CEMM-EX-E1WB-25S 2M X6 (M25) | 25S | M25×1.5 | M32×1.5 | 16 | 17 | 30 | 14 | 21.5 | 30 | 0.4 | 1.2 | 1.25 | 1.6 | 38 | 42 | View |
| CEMM-EX-E1WB-25 2M X6 (M25) | 25 | M25×1.5 | M32×1.5 | 16 | 17 | 30 | 18.3 | 25.6 | 30 | 0.4 | 1.2 | 1.25 | 1.6 | 38 | 42 | View |
| CEMM-EX-E1WB-32 3M X6 (M32) | 32 | M32×1.5 | M40×1.5 | 16 | 23.4 | 42 | 23.7 | 33.4 | 42 | 0.4 | 1.2 | 1.6 | 2 | 46 | 51 | View |
| CEMM-EX-E1WB-40 4M X6 (M40) | 40 | M40×1.5 | M50×1.5 | 16 | 30 | 60 | 28 | 39.5 | 60 | 0.4 | 1.6 | 1.6 | 2 | 55 | 60 | View |
| CEMM-EX-E1WB-50S 5M X6 (M50) | 50S | M50×1.5 | M63×1.5 | 16 | 35 | 70 | 35.2 | 46 | 70 | 0.4 | 1.6 | 2 | 2.5 | 61 | 66.5 | View |
| CEMM-EX-E1WB-50 5M X6 (M50) | 50 | M50×1.5 | M63×1.5 | 16 | 39.6 | 80 | 40.5 | 52.4 | 80 | 0.6 | 1.6 | 2 | 2.5 | 70 | 76 | View |
| CEMM-EX-E1WB-63S 6M X6 (M63) | 63S | M63×1.5 | M75×1.5 | 16 | 45.5 | 90 | 45.6 | 58.5 | 90 | 0.6 | 1.6 | 2 | 2.5 | 75 | 83 | View |
| CEMM-EX-E1WB-63 6M X6 (M63) | 63 | M63×1.5 | M75×1.5 | 16 | 51 | 100 | 54.6 | 64.5 | 100 | 0.6 | 1.6 | 2 | 2.5 | 80 | 89 | View |
| CEMM-EX-E1WB-75S 7M X6 (M75) | 75S | M75×1.5 | M90×2 | 16 | 57 | 110 | 59 | 70.4 | 110 | 0.6 | 1.6 | 2 | 2.5 | 91 | 98 | View |
| CEMM-EX-E1WB-75 7M X6 (M75) | 75 | M75×1.5 | M90×2 | 16 | 62.5 | 120 | 66.7 | 76.3 | 120 | 0.6 | 1.6 | 2.5 | 3 | 100 | 109 | View |
