Hexagon Head Stopping Plug Stainless Steel NPT Thread (SS316L)

Category : Plug / Stop end

Specifications
Product Name Hexagon Head Stopping Plug
Certification IECEx, ATEX & EAC
Suitable Gas Zones Zone 1 & Zone 2 (Gb, Gc)
Suitable Dust Zones Zone 21 & Zone 22 (Db, Dc)
Protection Type Ex eb IIC Gb, Ex tb IIIC Db
IP Rating IP66/IP68
IECEx Certificate No. IECEx KLCS 25.0040X
ATEX Certificate No. KLEX 25 ATEX 0017 X
Thread Type NPT
Material Stainless Steel (SS304), Stainless Steel (SS316L)
Finish Natural Brass or Nickel Plated
Ambient Temperature -60°C to +160°C
Gas Group IIC
Equipment Protection Level (EPL) Zone 1, Zone 2 (Gb, Gc), Zone 21, Zone 22 (Db, Dc)

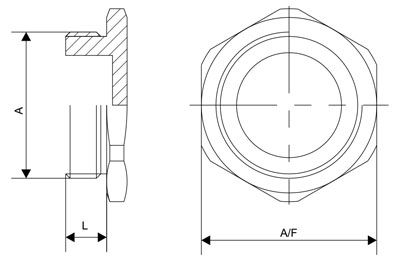

Size Chart

Certificates (Click to View): Certificate Presafe 20 ATEX 24571X Certificate IECEx PRE 20.0123X Certificate PESO
Code Thread (A) Length L Across Flats A/F Data Sheet (PDF)
CEMM-EX-HPL0N X6 3/8" 16 20 View
CEMM-EX-HPL1N X6 1/2" 21 25 View
CEMM-EX-HPL2N X6 3/4" 21 30 View
CEMM-EX-HPL3N X6 1" 26 36 View
CEMM-EX-HPL4N X6 1 1/4" 26 45 View
CEMM-EX-HPL5N X6 1 1/2" 27 55 View
CEMM-EX-HPL6N X6 2" 28 68 View
CEMM-EX-HPL7N X6 2 1/2" 41 80 View
CEMM-EX-HPL8N X6 3" 42 100 View
