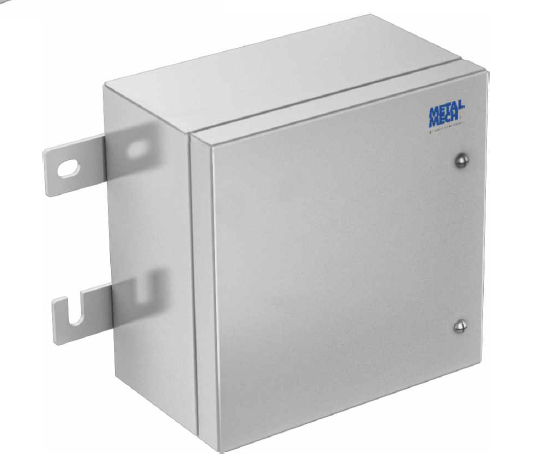

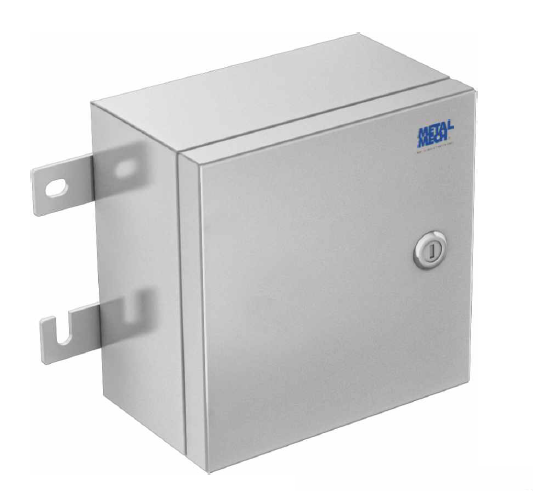

IP66 Stainless Steel Enclosures Without Gland

Category : Stainless Steel Enclosures

Specifications
ATEX Ex e Certificate No DNV 25 ATEX 27171 U
IECEx Ex e Certificate No IECEx DNV 25.0154U

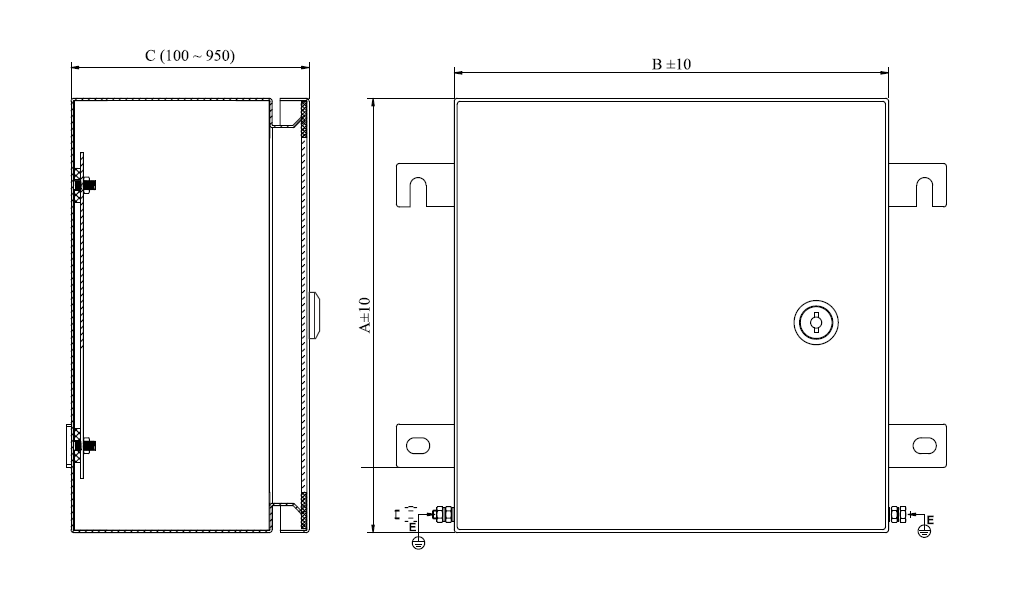

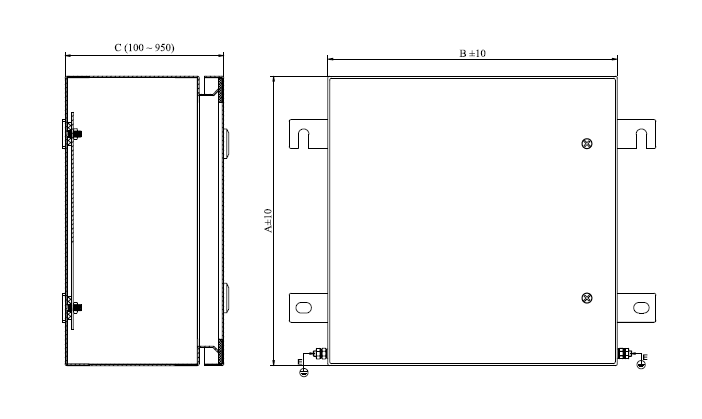

Size Chart

Certificates (Click to View): Certificate Presafe 20 ATEX 48906X Certificate IECEx PRE 20.0124X
Item Code Size Length Width Height Weight Data Sheet (PDF)
CEMM EE 01151510 150x150x100 150 150 100 2.10 Kgs View
CEMM EE 01202012 200x200x120 200 200 120 3.25 Kgs View
CEMM EE 01203012 200x300x120 200 300 120 4.25 Kgs View
CEMM EE 01252514 250x250x140 250 250 140 4.80 Kgs View
CEMM EE 01303012 300x300x120 300 300 120 5.80 Kgs View
CEMM EE 01303514 300x350x140 300 350 140 6.85 Kgs View
CEMM EE 01383816 380x380x160 380 380 160 9.20 Kgs View
CEMM EE 01404016 400x400x160 400 400 160 10.00 Kgs View
CEMM EE 01504016 500x400x160 500 400 160 12.00 Kgs View
CEMM EE 01505020 500x500x200 500 500 200 15.50 Kgs View
CEMM EE 01605021 600x500x210 600 500 210 18.20 Kgs View
CEMM EE 01606021 600x600x210 600 600 210 21.30 Kgs View
CEMM EE 01656521 650x650x210 650 650 210 24.20 Kgs View
CEMM EE 01806025 800x600x250 800 600 250 28.40 Kgs View
