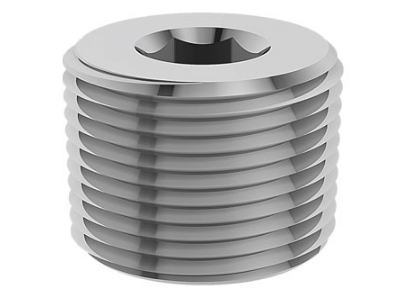

Plug Stainless Steel NPT Thread (SS316L)

Category : Plug / Stop end

Specifications
IP Rating IP68
Certificates lECEx PRE 20.0123X
ATEX Presafe 20 ATEX 24571X
EAC RU C-IN.AA71.B.00212/20
Thread Type NPT
Protection Type Ex d, Ex e, Ex t
Material Stainless Steel (SS316L)
Ambient Temperature IECEx/ATEX : -55° C < Ta < +160° C EAC: -60° C < Ta < +130° C

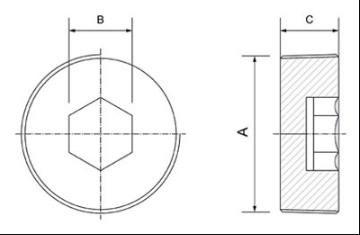

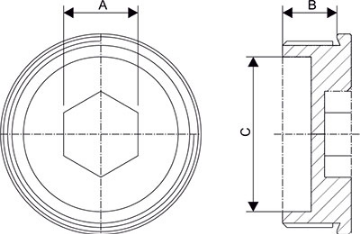

Size Chart

Order Code A B C Data Sheet (PDF)
CEMM-EX-PLG0N X6 (3/8''NPT) 3/8''NPT 8 11 View
CEMM-EX-PLG1N X6 (1/2''NPT) 1/2''NPT 10 14 View
CEMM-EX-PLG2N X6 (3/4''NPT) 3/4''NPT 10 15 View
CEMM-EX-PLG3N X6 (1''NPT) 1''NPT 14 18 View
CEMM-EX-PLG4N X6 (1 1/4''NPT) 1.1/4''NPT 14 19 View
CEMM-EX-PLG5N X6 (1 1/2''NPT) 1.1/2''NPT 14 19 View
CEMM-EX-PLG6N X6 (2''NPT) 2''NPT 14 20 View
CEMM-EX-PLG7N X6 (2 1/2''NPT) 2.1/2''NPT 14 30 View
CEMM-EX-PLG8N X6 (3''NPT) 3''NPT 14 31 View
