Reducer Steel Stainless (SS316L), ( Metric to NPT Thread)

Category : Reducer

Specifications
IP Rating IP68
Certificates lECEx PRE 20.0123X
ATEX Presafe 20 ATEX 24571X
EAC RU C-IN.AA71.B.00212/20
Thread Type Metric and NPT
Protection Type Ex d, Ex e, Ex t
Material Stainless Steel (SS304/SS316L)
Ambient Temperature IECEx/ATEX : -55° C < Ta < +160° C EAC: -60° C < Ta < +130° C

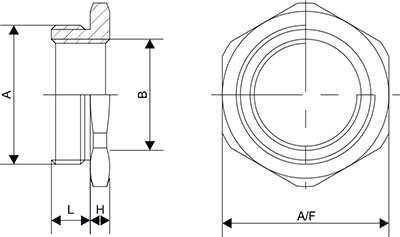

Size Chart

Order Code A B L A/F G
CEMM-EX-RD1M0N X6 (M20X1.5 to 3/8''NPT) M20X1.5 3/8'' NPT 22 25 16
CEMM-EX-RD2M0N X6 (M25X1.5 to 3/8''NPT) M25X1.5 3/8'' NPT 22 30 16
CEMM-EX-RD2M1N X6 (M25X1.5 to 1/2''NPT) M25X1.5 1/2''NPT 22 30 16
CEMM-EX-RD3M1N X6 (M32X1.5 to 1/2''NPT) M32X1.5 1/2''NPT 22 36 16
CEMM-EX-RD3M2N X6 (M32X1.5 to 3/4''NPT) M32X1.5 3/4''NPT 22 36 16
CEMM-EX-RD4M1N X6 (M40X1.5 to 1/2''NPT) M40X1.5 1/2''NPT 22 45 16
CEMM-EX-RD4M2N X6 (M40X1.5 to 3/4''NPT) M40X1.5 3/4''NPT 22 45 16
CEMM-EX-RD4M3N X6 (M40X1.5 to 1''NPT) M40X1.5 1''NPT 22 45 16
CEMM-EX-RD5M1N X6 (M50X1.5 to 1/2''NPT) M50X1.5 1/2''NPT 22 55 16
CEMM-EX-RD5M2N X6 (M50X1.5 to 3/4''NPT) M50X1.5 3/4''NPT 22 55 16
CEMM-EX-RD5M3N X6 (M50X1.5 to 1''NPT) M50X1.5 1''NPT 22 55 16
CEMM-EX-RD5M4N X6 (M50X1.5 to 1.1/4''NPT) M50X1.5 1.1/4''NPT 22 55 16
CEMM-EX-RD6M2N X6 (M63X1.5 to 3/4''NPT) M63X1.5 3/4''NPT 22 68 16
CEMM-EX-RD6M3N X6 (M63X1.5 to 1''NPT) M63X1.5 1''NPT 22 68 16
CEMM-EX-RD6M4N X6 (M63X1.5 to 1.1/4''NPT) M63X1.5 1.1/4''NPT 22 68 16
CEMM-EX-RD6M5N X6 (M63X1.5 to 1.1/2''NPT) M63X1.5 1.1/2''NPT 22 68 16
CEMM-EX-RD7M3N X6 (M75X1.5 to 1''NPT) M75X1.5 1''NPT 28 80 20
CEMM-EX-RD7M4N X6 (M75X1.5 to 1.1/4''NPT) M75X1.5 1.1/4''NPT 28 80 20
CEMM-EX-RD7M5N X6 (M75X1.5 to 1.1/2''NPT) M75X1.5 1.1/2''NPT 28 80 20
CEMM-EX-RD7M6N X6 (M75X1.5 to 2''NPT) M75X1.5 2''NPT 28 80 20
CEMM-EX-RD8M3N X6 (M90X1.5 to 1''NPT) M90X1.5 1''NPT 28 95 20
CEMM-EX-RD8M4N X6 (M90X1.5 to 1.1/4''NPT) M90X1.5 1.1/4''NPT 28 95 20
CEMM-EX-RD8M5N X6 (M90X1.5 to 1.1/2''NPT) M90X1.5 1.1/2''NPT 28 95 20
CEMM-EX-RD8M6N X6 (M90X1.5 to 2''NPT) M90X1.5 2''NPT 28 95 20
CEMM-EX-RD8M7N X6 (M90X1.5 to 2.1/2''NPT) M90X1.5 2.1/2''NPT 28 95 20
CEMM-EX-RD9M4N X6 (M100X1.5 to 1.1/4''NPT) M100X1.5 1.1/4''NPT 32 110 22
CEMM-EX-RD9M5N X6 (M100X1.5 to 1.1/2''NPT) M100X1.5 1.1/2''NPT 32 110 22
CEMM-EX-RD9M6N X6 (M100X1.5 to 2''NPT) M100X1.5 2''NPT 32 110 22
CEMM-EX-RD9M7N X6 (M100X1.5 to 2.1/2''NPT) M100X1.5 2.1/2''NPT 32 110 22
CEMM-EX-RD9M8N X6 (M100X1.5 to 3''NPT) M100X1.5 3''NPT 32 110 22
