Reducers

Category : Accessories

Specifications
Type KRM, Metric-Metric
Gland Material Polyamide, Fibre Reinforced
Thread Metric
Operating Temperature (-40 °C - 100 °C)
Finish RAL 7035(Light Grey)

Size Chart

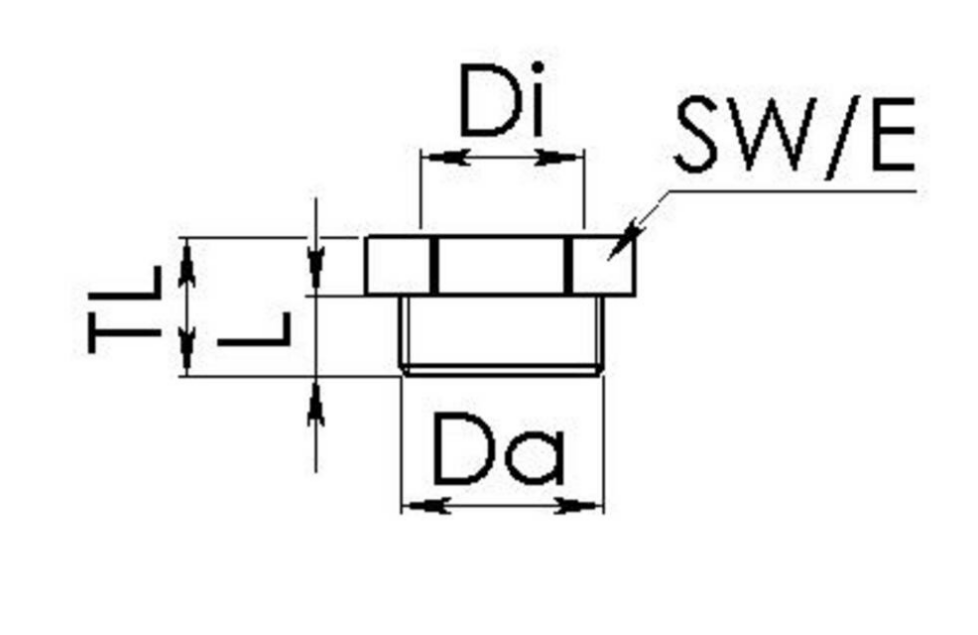

Order Code Color Connection Thread Connection Thread Size Inner Thread Length (mm) Key Width (SW) Total Length (mm) Standard Packing (Pcs) Data Sheet (PDF)
CEKRM 16/12 LG - 10063577 RAL 7035 M 16x1,5 M 12x1,5 9 mm 22 mm 16 mm 100 View
CEKRM 20/12 LG - 10063578 RAL 7035 M 20x1,5 M 12x1,5 9 mm 24 mm 16 mm 100 View
CEKRM 20/16 LG - 10063579 RAL 7035 M 20x1,5 M 16x1,5 9 mm 24 mm 16 mm 100 View
CEKRM 25/12 LG - 10063580 RAL 7035 M 25x1,5 M 12x1,5 10 mm 29 mm 17 mm 100 View
CEKRM 25/16 LG - 10063581 RAL 7035 M 25x1,5 M 16x1,5 10 mm 29 mm 17 mm 100 View
CEKRM 25/20 LG - 10063582 RAL 7035 M 25x1,5 M 20x1,5 10 mm 29 mm 17 mm 100 View
CEKRM 32/16 LG - 10063583 RAL 7035 M 32x1,5 M 16x1,5 12 mm 36 mm 19 mm 50 View
CEKRM 32/20 LG - 10063584 RAL 7035 M 32x1,5 M 20x1,5 12 mm 36 mm 19 mm 50 View
CEKRM 32/25 LG - 10063585 RAL 7035 M 32x1,5 M 25x1,5 12 mm 36 mm 19 mm 50 View
CEKRM 40/20 LG - 10063586 RAL 7035 M 40x1,5 M 20x1,5 12 mm 46 mm 19 mm 25 View
CEKRM 40/25 LG - 10063587 RAL 7035 M 40x1,5 M 25x1,5 12 mm 46 mm 19 mm 25 View
CEKRM 40/32 LG - 10063588 RAL 7035 M 40x1,5 M 32x1,5 12 mm 46 mm 19 mm 25 View
CEKRM 50/25 LG - 10063589 RAL 7035 M 50x1,5 M 25x1,5 14 mm 55 mm 21 mm 5 View
CEKRM 50/32 LG - 10063590 RAL 7035 M 50x1,5 M 32x1,5 14 mm 55 mm 21 mm 5 View
CEKRM 50/40 LG - 10063591 RAL 7035 M 50x1,5 M 40x1,5 14 mm 55 mm 21 mm 5 View
CEKRM 63/32 LG - 10063592 RAL 7035 M 63x1,5 M 32x1,5 15 mm 65 mm 22 mm 5 View
CEKRM 63/40 LG - 10063593 RAL 7035 M 63x1,5 M 40x1,5 15 mm 65 mm 22 mm 5 View
CEKRM 63/50 LG - 10063594 RAL 7035 M 63x1,5 M 50x1,5 15 mm 65 mm 22 mm 5 View
CEKRM 25/20 BK - 10063807 RAL 9005 M 25x1,5 M 20x1,5 10 mm 29 mm 17 mm 100 View
