Type	A2F Single Compression Cable Gland
Cable Types	Unarmoured
Application	For indoor and outdoor use with all types of unarmoured cable where it is essential to provide IP66 or IP68 protection on the outer sheath of cable for circular, Unarmoured plastic or rubber sheathed cables.
Option Thread	NPT
Gland Material	Stainless Steel (SS316L)
IP Rating	IP66 & IP68
Seal Type	Displacement type
Operating Temperature	Standard seals (Nitrile): -20°C to 80°C. on request (silicone) : -60°C to +180°C
Finish	Natural Brass or Nickle Plated or Electroless Nickle Plated

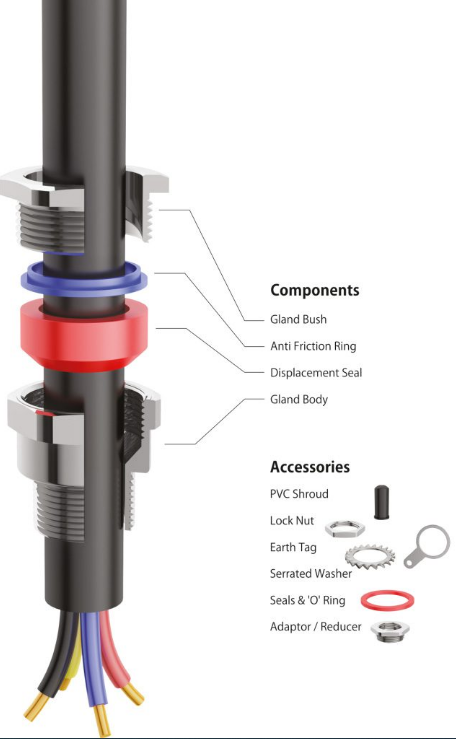

Accessories	PVC/LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer
IECEx Certificate No.	IECEx PRE 20.0124X
ATEX Certificate No.	Presafe 20 ATEX 48906X
EAC Certificate No.	RU C-IN.AA71.B.00212/20
Protection Type	Ex d, Ex e, Ex t

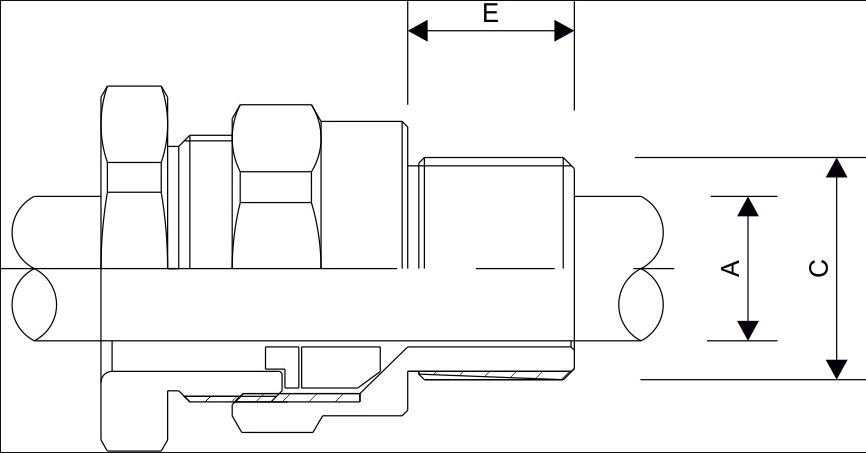

Order Code	Cable Gland Size	NPT	Connection Thread Length	Cable Dia. (mm)	Across Flat	Across Corner	Data Sheet (PDF)
CEMM-EX-A2F-20S16 1N X6 (1/2" NPT)	20S16	1/2''	20	3.2 mm - 8.5 mm	24	26.5	View
CEMM-EX-A2F-20S 1N X6 (1/2" NPT)	20S	1/2''	20	6.2 mm - 11.6 mm	24	26.5	View
CEMM-EX-A2F-20 1N X6 (1/2" NPT)	20	1/2''	20	8 mm - 13.9 mm	27	30	View
CEMM-EX-A2F-25 2N X6 (3/4" NPT)	25	3/4''	21	11.2 mm - 19.6 mm	36	40	View
CEMM-EX-A2F-32 3N X6 (1" NPT )	32	1''	26	17.1 mm - 26 mm	42	46	View
CEMM-EX-A2F-40 4N X6 (1.1/4" NPT)	40	1 1/4''	26	23.6 mm - 31.6 mm	50	55	View
CEMM-EX-A2F-50S 5N X6 ( 1.1/2" NPT)	50S	1 1/2''	26	31.1 mm - 37.5 mm	55	60	View
CEMM-EX-A2F-50 6N X6 ( 2" NPT)	50	2''	27	35.7 mm - 43.1 mm	61	65	View
CEMM-EX-A2F-63S 6N X6 ( 2" NPT)	63S	2''	27	41.6 mm - 48.7 mm	70	77	View
CEMM-EX-A2F-63 7N X6 ( 2.1/2" NPT)	63	2 1/2''	40	41.6 mm - 48.7 mm	74	81	View
CEMM-EX-A2F-75S 7N X6 ( 2.1/2" NPT)	75S	2 1/2''	40	54.1 mm - 61.2 mm	80	87	View
CEMM-EX-A2F-75 8N X6 (3" NPT)	75	3''	42	61.2 mm - 67.2 mm	91	93	View
CEMM-EX-A2F-90 9N X6 (3.1/2" NPT)	90	3 1/2''	44	66.7 mm - 79.2 mm	108	116	View

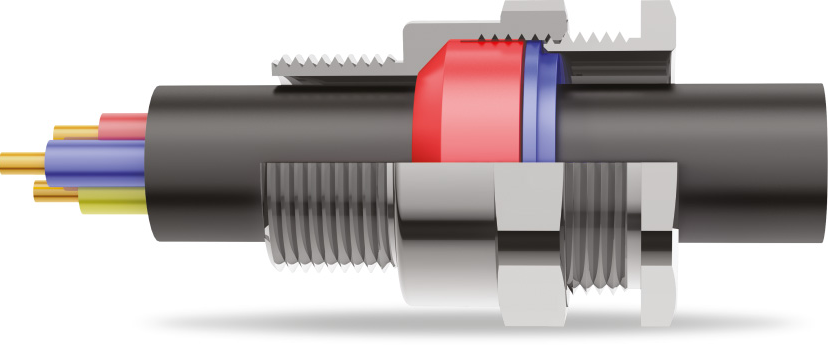

Single Compression Cable Gland Stainless Steel (SS316L) (NPT Thread)
