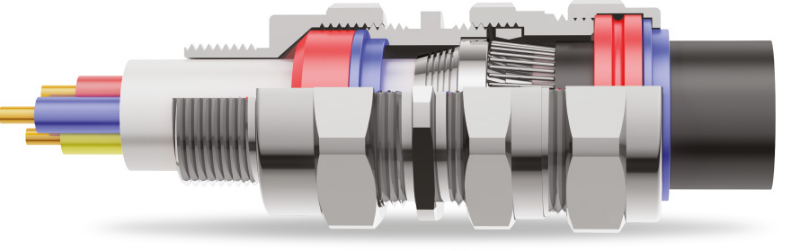

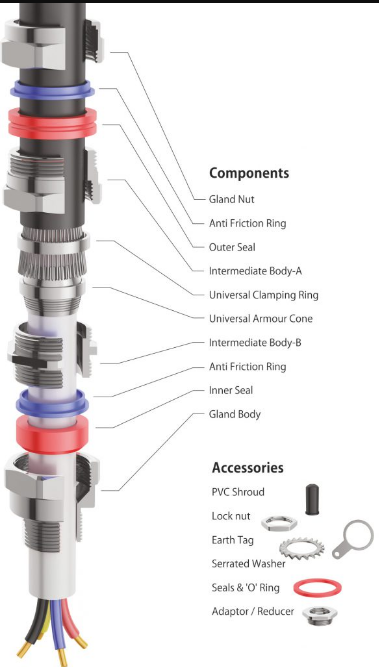

E1FUNV Double Compression cable gland Stainless Steel (SS316L) (NPT Thread)

Category : Double Compression Cable Gland

Specifications
Type E1FUNV Cable Gland
Cable Types For all types of IEC armoured cables.
Application Provides a flameproof (Type ”D”) seal on the cable inner bedding. Allows mechanical cable retention and earth continuity via the cable armor termination. Reversible armour cone and clamping ring arrangement facilitates remote make off and enables the cable to be disconnected from the equipment. Stepped cone is suitable for SWA cables. Grooved cone is suitable for all other approved armored cables.
Option Thread NPT
Gland Material Stainless Steel (SS316L)
IP Rating IP66 & IP67
Sealing Ring Double Compression Sealing (Sealing on both outer and inner sheath)
Operating Temperature Standard Seals (Nitrile): -20°C To 80°C. on Request (Silicone) : – 60°C to +180°C
Finish Natural Brass or Nickle Plated or Electroless Nickle Plated
Accessories PVC S/ LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer.
IECEx Certificate No. IECEx PRE 20.0124X
ATEX Certificate No. Presafe 20 ATEX 48906X
EAC Certificate No. RU C-IN.AA71.B.00212/20
Protection Type Ex d, Ex e, Ex t

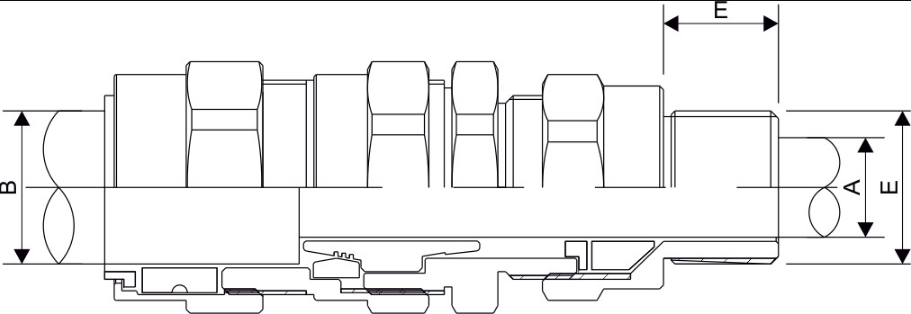

Size Chart

Order Code Cable Gland Size Metric Connection Thread Length Cable Dia. (mm) Across Flat Across Corner Data Sheet (PDF)
CEMM-EX-E1FUNV-20S16 1N X6 (1/2" NPT) 20S16 1/2''NPT 17 6.2 mm - 13.1 mm 25 27.5 View
CEMM-EX-E1FUNV-20S 1N X6 (1/2" NPT) 20S 1/2''NPT 17 9.6 mm - 15.5 mm 25 27.5 View
CEMM-EX-E1FUNV-20 1N X6 (1/2" NPT) 20 1/2''NPT 17 12.5 mm - 20.9 mm 31 34 View
CEMM-EX-E1FUNV-25S 2N X6 (3/4" NPT) 25S 3/4''NPT 17 14 mm - 21.5 mm 38 42 View
CEMM-EX-E1FUNV-25 2N X6 (3/4" NPT) 25 3/4''NPT 17 18.3 mm - 25.6 mm 38 42 View
CEMM-EX-E1FUNV-32 3N X6 (1" NPT ) 32 1''NPT 17 23.7 mm - 33.4 mm 46 51 View
CEMM-EX-E1FUNV-40 4N X6 (1.1/4" NPT) 40 1.1/2 NPT 17 28 mm - 39.5 mm 55 60 View
CEMM-EX-E1FUNV-50S 5N X6 ( 1.1/2" NPT) 50S 1.1/2 NPT 17 35.2 mm - 46 mm 61 66.5 View
CEMM-EX-E1FUNV-50 6N X6 ( 2" NPT) 50 2" NPT 17 40.5 mm - 52.4 mm 70 76 View
CEMM-EX-E1FUNV-63S 6N X6 ( 2" NPT) 63S 2.1/2" NPT 17 45.6 mm - 58.5 mm 75 83 View
CEMM-EX-E1FUNV-63 7N X6 ( 2.1/2" NPT) 63 2.1/2" NPT 17 54.6 mm - 64.5 mm 80 89 View
CEMM-EX-E1FUNV-75S 7N X6 ( 2.1/2" NPT) 75S 2.1/2" NPT 17 59 mm - 70.4 mm 91 98.5 View
CEMM-EX-E1FUNV-75 8N X6 (3" NPT) 75 3" NPT 17 66.7 mm - 76.3 mm 99.5 109 View
CEMM-EX-E1FUNV-90 9N X6 (3.1/2" NPT) 90 3.1/2" NPT 24 76.2 mm - 87.2 mm 114.5 124 View
