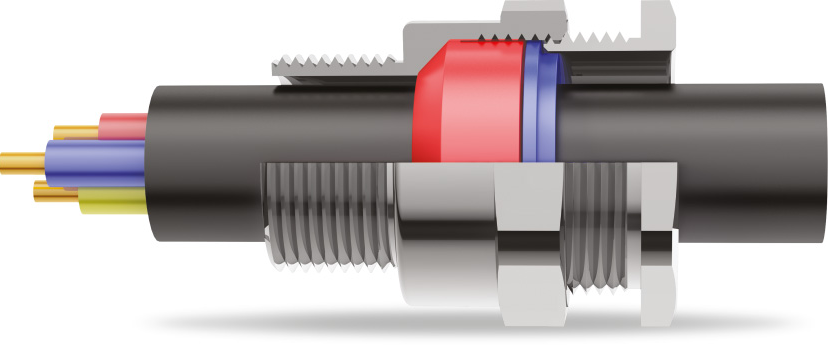

Single Compression Cable Gland Stainless Steel (SS316L) (Metric Thread)

Category : Single Compression Cable Gland

Specifications
Type A2F Single Compression Cable Gland
Cable Types Unarmoured
Application For indoor and outdoor use with all types of unarmoured cable where it is essential to provide IP66 or IP68 protection on the outer sheath of cable for circular, Unarmoured plastic or rubber sheathed cables.
Option Thread Metric
Gland Material Stainless Steel (SS316L)
IP Rating IP66 & IP68
Seal Type Displacement type
Operating Temperature Standard seals (Nitrile): -20°C to 80°C. on request (silicone) : -60°C to +180°C
Finish Natural Brass or Nickle Plated or Electroless Nickle Plated

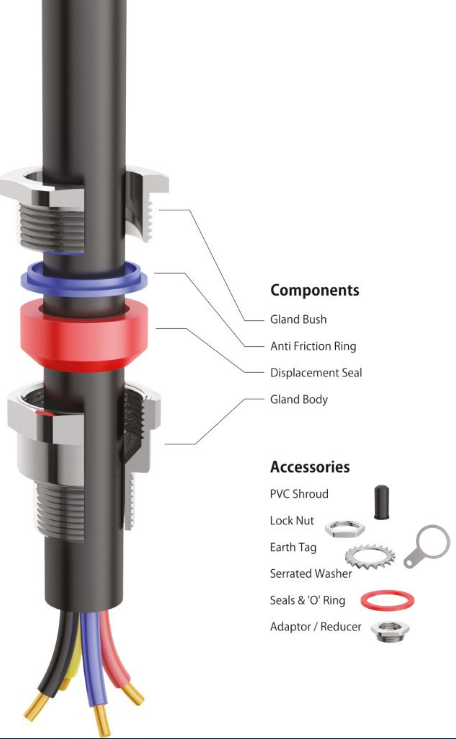

Accessories PVC/LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer
IECEx Certificate No. IECEx PRE 20.0124X
ATEX Certificate No. Presafe 20 ATEX 48906X
EAC Certificate No. RU C-IN.AA71.B.00212/20
Protection Type Ex d, Ex e, Ex t

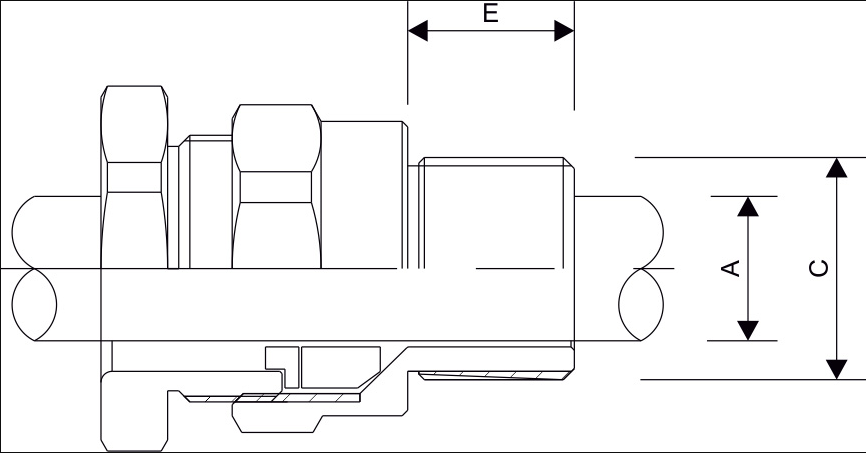

Size Chart

Order Code Cable Gland Size Metric Connection Thread Length Cable Dia. (mm) Across Flat Across Corner Data Sheet (PDF)
CEMM-EX-A2F-20S16 1M X6 (M20) 20S16 M20 17 3.2 mm - 8.5 mm 24 26.5 View
CEMM-EX-A2F-20S 1M X6 (M20) 20S M20 17 6.2 mm - 11.6 mm 24 26.5 View
CEMM-EX-A2F-20 1M X6 (M20) 20 M20 17 8 mm - 13.9 mm 27 30 View
CEMM-EX-A2F-25 2M X6 (M25) 25 M25 17 11.2 mm - 19.6 mm 36 40 View
CEMM-EX-A2F-32 3M X6 (M32) 32 M32 17 17.1 mm - 26 mm 42 46 View
CEMM-EX-A2F-40 4M X6 (M40) 40 M40 17 23.6 mm - 31.6 mm 50 55 View
CEMM-EX-A2F-50S 5M X6 (M50) 50S M50 17 31.1 mm - 37.5 mm 55 60 View
CEMM-EX-A2F-50L 5M X6 (M50) 50 M50 17 35.7 mm - 43.1 mm 61 65 View
CEMM-EX-A2F-63S 6M X6 (M63) 63S M63 17 41.6 mm - 48.7 mm 70 77 View
CEMM-EX-A2F-63L 6M X6 (M63) 63 M63 17 47.3 mm - 55.2 mm 74 81 View
CEMM-EX-A2F-75S 7M X6 (M75) 75S M75 17 54.1 mm - 61.2 mm 80 87 View
CEMM-EX-A2F-75L 7M X6 (M75) 75 M75 17 61.2 mm - 67.2 mm 91 93 View
CEMM-EX-A2F-90 9M X6 (M90) 90 M90 24 66.7 mm - 79.2 mm 108 116 View
