E1W Double Compression Cable Gland

product
Type E1W Double Compression Cable Gland
Cable Type Armoured (Steel wire armour (SWA) Aluminium wire armour (AWA)
Application For use with all types of SWA cable for indoor and outdoor application. Used in applications where it is essential to provide an IP66 seal on the outer sheath. Armour lock with separate armour locking ring, ideal for checking electrical continuity
Gland Material Brass (CuZn39PB3), Stainless Steel (304 or 316L), Aluminum (6082)
Option Thread Metric, NPT, BSP, BSPT
IP Rating IP66
Operating Temperature Standard Seals (Nitrile): -20°C To 80°C. On Request (Silicone) : – 60°C to +180°C
Seal Type Double Compression Sealing (Sealing on both outer and inner sheath)
Finish Natural Brass or Nickel Plated or Electroless Nickel Plated
Accessories PVC/LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer.

Size Chart / Specification

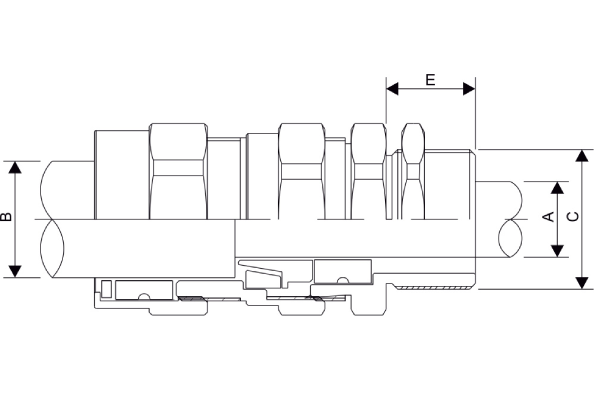

ORDER CODE GLAND SIZE THREAD LENGTH 'C' (mm) THREAD SIZE 'E' CABLE DIA. RANGE 'A' (mm) CABLE DIA. RANGE 'B' (mm)
  METRIC METRIC NPT (mm) MIN MAX MIN MAX
MM-E1W20S X6 20S M20 1/2″ 15 8.8 11.07 11.8 16
MM-E1W20L X6 20L M20 1/2″ 15 11.4 14 14 20.8
MM-E1W25S X6 25S M25 3/4″ 15 13 16 18 24
MM-E1W25L X6 25L M25 3/4″ 15 17.3 20 20.3 27.4
MM-E1W32S X6 32S M32 1″ 15 20 23 24.5 31
MM-E1W32L X6 32L M32 1″ 15 24.2 26.3 26.5 33.5
MM-EW40S X6 40S M40 11/4″ 15 26 29 30.4 36
MM-E1W40L X6 40L M40 11/4″ 15 29.5 32.1 33.2 40
MM-E1W50S X6 50S M50 11/2″ 15 33 38.1 40 46.5
MM-E1W50L X6 50L M50 11/2″ 15 38 44 44 52.6
MM-E1W63S X6 63S M63 2″ 20 44 50.5 50 59
MM-E1W63L X6 63L M63 2″ 20 50 56 56 66
MM-E1W75S X6 75S M75 21/2″ 20 56 62 63.5 71
MM-E1W75L X6 75L M75 21/2″ 20 62 68.5 69 78
MM-E1W90L X6 90L M90 3″ 20 65 80 84 96
