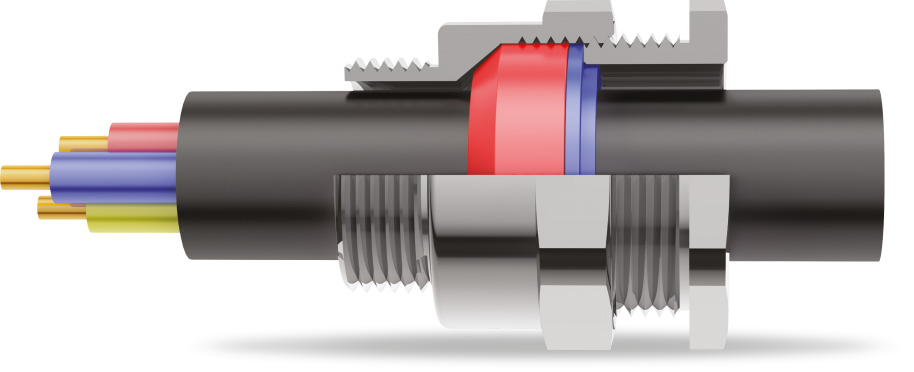

A1/A2 Type Cable Glands

product
We are India's leading manufacturer, supplier, and exporter of A1/A2 Type Cable Glands. ‘A’ type glands more commonly known as ‘stuffing’ glands. There are two types of ‘A’ gland. A1 and A2, A1 is retained on the cable whilst the ‘A2’ gland seals and retains on the cable.
Type A1/A2 Type Single Compression Cable Gland
Gland Material Brass (CuZn39Pb3), Stainless Steel (304 or 316L), Aluminium (6082)
Option Thread Metric, NPT, BSP & PG
IP Rating IP66 & IP68
Operating Temperature Standard seals (Nitrile): -20°C to +80°C. on request (silicone) : -60°C to +180°C
Seal Type Displacement type
Cable Types Unarmoured
Finish Natural Brass or Nickel Plated or Electroless Nickel Plated
Accessories PVC/LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer.

Size Chart / Specification

ORDER CODE GLAND SIZE THREAD LENGTH 'C' THREAD LENGTH 'E' CABLE DIA. RANGE 'A' (mm) HEXAGON SIZE 'A/F'
  METRIC NPT METRIC MIN MAX
MM-A1A2-20S16 X6 20S16 M20x1.5 1/2" 10 6 10.5 22
MM-A1A2-20S X6 20S M20x1.5 1/2" 10 9 12 22
MM-A1A2-20L X6 20L M20x1.5 1/2" 10 10.5 14 27
MM-A1A2-25S X6 25S M25x1.5 3/4" 10 11.5 16.5 31
MM-A1A2-25L X6 25L M25x1.5 3/4" 10 15 20.5 35
MM-A1A2-32 X6 32L M32x1.5 1" 10 19.5 26.5 42
MM-A1A2-40 X6 40L M40x1.5 1.1/4" 15 26 32.7 50
MM-A1A2-50S X6 50S M50x1.5 1.1/2" 15 32 39.5 55
MM-A1A2-50L X6 50L M50x1.5 2" 15 38 44.5 62
MM-A1A2-63S X6 63S M63x1.5 2" 15 43 49.5 70
MM-A1A2-63L X6 63L M63x1.5 2.1/2" 15 48 56.5 75
MM-A1A2-75S X6 75S M75x1.5 2.1/2" 15 55 61.7 80
MM-A1A2-75L X6 75L M75x1.5 3" 15 60.5 68 85
MM-A1A2-90 X6 90 M90x2 3" 20 66 78 108
MM-A1A2-100 X6 100 M100x2 3.1/2" 20 76.5 90 120
